High-efficiency Airmasters Air Wipe with 360° uniform airflow for drying, cooling, and cleaning continuous profiles like cables, pipes, tubes, wires, and extrusions. Energy-saving, low-noise, and maintenance-free.
ACE Flow Konzepts Pvt Ltd is one of the premium Airmasters Air Wipe Manufacturers in India, offering advanced, energy-efficient, and durable air wiping systems for industrial applications. The Airmasters Air Wipe is specifically designed to maximize compressed air performance while minimizing noise and air consumption, making production lines quieter, safer, and more cost-efficient.

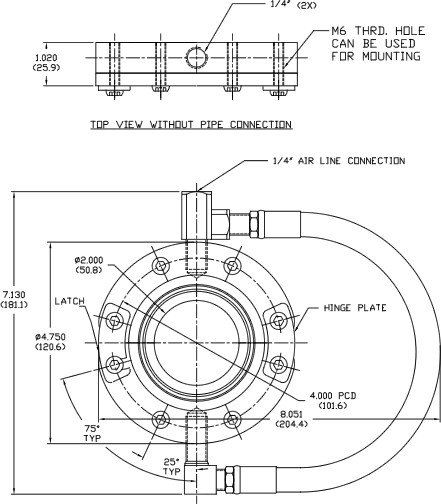

With its true 360-degree uniform airflow, the Air Wipe delivers complete and consistent coverage around cables, pipes, wires, hoses, tubes, extrusions, and other continuous profiles. This ensures perfect drying, cooling, and cleaning without air loss or process interruption. Its split two-piece hinged design allows quick installation and easy clamping around moving materials—ideal for high-speed, continuous manufacturing lines.
Constructed from high-quality SS304, SS316L stainless steel, or coated aluminium, the Airmasters Air Wipe offers excellent corrosion resistance, durability, and long service life even under extreme industrial conditions. With no moving parts, it requires virtually zero maintenance and provides stable performance over extended periods of operation.

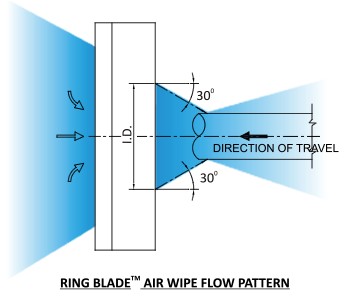

Using the Coanda effect, the Air Wipe creates a high-velocity laminar airflow that entrains large amounts of ambient air and amplifies output up to 30 times, resulting in major compressed-air savings. Many users achieve payback within weeks compared to conventional nozzle rings or annular slot designs.
The system is perfect for cooling hot extrusions, blowing off moisture, removing dust or debris, and preparing surfaces before coating or printing. It is available in 12 standard inside diameters (from 3/8" to 11") with custom sizes available on request. The standard 0.002” outlet gap suits most applications, and an optional 0.004” shim can be used for increased force and airflow.
Features
-
Split, hinged 2-piece design for easy installation around continuous materials
-
360° laminar, uniform airflow using the Coanda effect
-
No moving parts – instant ON/OFF, no electricity required
-
Available in Aluminium or SS316L
-
Lightweight, compact, and easy to mount
Benefits
-
Perfect, even blow-off around the entire part
-
Major compressed-air savings and reduced noise
-
Maintenance-free and extremely durable
-
Safer operation with no explosion hazard
-
Simple installation and low operating cost
Applications
-
Drying wires, cables, pipes, hoses, rods, tubes
-
Cooling hot extrusions after forming
-
Cleaning dust, particles, moisture from continuous profiles
-
Blow-off before printing, coating, or packaging
-
Surface preparation in automated production lines
| Coated Aluminium (Standard Application) | Stainless Steel (High Temperature Application) | Size | Sound Level | Air consumption at 72.5 PSI | |
|---|---|---|---|---|---|
| SS304 | SS316L | ||||
| AIR-AW099 | – | – | 3/8” (9 mm) | 67 dB(A) | 7.9 SCFM |
| AIR-AW00 | AIR-AW00S | AIR-AW00-316L | ½” (12.7 mm) | 73 dB(A) | 9.33 SCFM |
| AIR-AW01 | AIR-AW01S | AIR-AW01-316L | 1” (25 mm) | 76 dB(A) | 19.91 SCFM |
| AIR-AW15 | AIR-AW15S | AIR-AW15-316L | 1-1/2” (40 mm) | 76 dB(A) | 23.65 SCFM |
| AIR-AW02 | AIR-AW02S | AIR-AW02-316L | 2” (51 mm) | 77 dB(A) | 26.14 SCFM |
| AIR-AW03 | AIR-AW03S | AIR-AW03-316L | 3” (76 mm) | 78 dB(A) | 31.12 SCFM |
| AIR-AW04 | AIR-AW04S | AIR-AW04-316L | 4” (102 mm) | 80 dB(A) | 46.67 SCFM |
| AIR-AW05 | AIR-AW05S | AIR-AW05-316L | 5” (127 mm) | 82 dB(A) | 56.01 SCFM |
| AIR-AW06 | AIR-AW06S | AIR-AW06-316L | 6” (153 mm) | 83 dB(A) | 74.68 SCFM |
| AIR-AW07 | AIR-AW07S | AIR-AW07-316L | 7” (178 mm) | 85 dB(A) | 80.9 SCFM |
| AIR-AW09 | AIR-AW09S | AIR-AW09-316L | 9” (229 mm) | 87 dB(A) | 102.68 SCFM |
| AIR-AW11 | AIR-AW11S | AIR-AW11-316L | 11” (279 mm) | 89 dB(A) | 126.33 SCFM |
