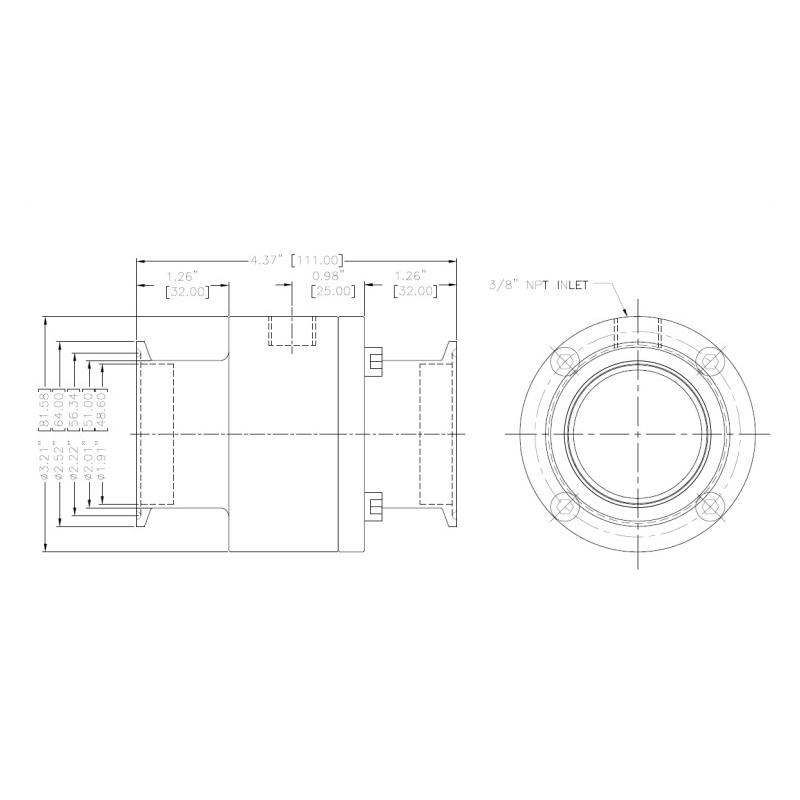

High-performance Airmasters Air Conveyor designed for fast, efficient conveying of powders, pellets, liquids, trim waste, and small parts using compressed air. Compact, durable, and maintenance-free.
ACE Flow Konzepts Pvt Ltd is a reliable Airmasters Air Conveyor Manufacturer in India, offering powerful and efficient conveying solutions that move materials quickly using compressed air. The Airmasters Air Conveyor generates a high-velocity airflow that suspends and transports powders, granules, liquids, trim waste, and small parts without the need for complex mechanical equipment or moving components.
Compact, lightweight, and easy to install, it integrates smoothly into existing systems and provides continuous, smooth material flow for both short- and long-distance conveying. Built using high-quality materials such as coated aluminium or SS304/SS316L stainless steel, it withstands harsh industrial conditions and high temperatures.
The Air Flow Vac – Air Conveyor uses Venturi action to create a powerful conveying force. Simply attach standard hoses to each end to create a high-capacity, maintenance-free conveying system. Flow and vacuum levels can be easily adjusted using a pressure regulator.
Available in sizes ranging from 3/8” to 5”, the system covers most conveying needs across industries. It is ideal for applications where blower systems are too expensive, bulky, or high maintenance—especially for intermittent operations.
Advantages
-
Long service life in harsh environments
-
Simple control of material flow
-
Easy to install and operate
-
Maintenance-free; no moving parts
-
Instant ON/OFF with no electricity required
Features
-
Available in coated aluminium or stainless steel
-
Compatible with standard hose sizes
-
Threaded options available for pipe installation
-
Flow controlled by pressure regulator
Applications
-
Automotive: screws, bearings, metal/plastic parts
-
Bottling: cap conveying
-
Food: conveying caps, dried items, small food materials
-
General Manufacturing: material transfer, trim removal
-
Paper: trim removal
-
Plastic: trim removal in converting
-
Printing: scrap/waste removal
-
Pharmaceutical: tablet/capsule conveying
-
Textile: thread conveying
| Aluminium | Aluminium Threaded | Steel | Steel Threaded | Size Outside Diameter Inches (mm) | Air Consumption SCFM at 80 PSIG (SLPM at 5.5 Bar) | Vacuum Inches (KPA) |
|---|---|---|---|---|---|---|
| AIR-CONV038 | AIR-CONV038S | 3/8” (9.5 mm) | 5.3 (150) | -12 (-30) | ||
| AIR-CONV012 | AIR-CONV012S | 1/2” (12.7 mm) | 6.7 (190) | -10 (-25) | ||
| AIR-CONV00 | AIR-CONV00S | 3/4” (19 mm) | 10.6 (301) | -6.8 (-17) | ||
| AIR-CONV01 | AIR-CONV01T | AIR-CONV01S | AIR-CONV01TS | 1” (25 mm) | 15 (415) | -4.2 (-11) |
| AIR-CONV02 | AIR-CONV02T | AIR-CONV02S | AIR-CONV02TS | 1-1/4” (32 mm) | 26 (730) | -4.2 (-11) |
| AIR-CONV03 | AIR-CONV03T | AIR-CONV03S | AIR-CONV03TS | 1-1/2” (38 mm) | 33 (932) | -3.6 (-9) |
| AIR-CONV04 | AIR-CONV04T | AIR-CONV04S | AIR-CONV04TS | 2” (51 mm) | 45 (1270) | -2.8 (-7) |
| AIR-CONV05 | AIR-CONV05T | AIR-CONV05S | AIR-CONV05TS | 2-1/2” (64 mm) | 58 (1650) | -2.3 (-6) |
| AIR-CONV06 | AIR-CONV06T | AIR-CONV06S | AIR-CONV06TS | 3” (76 mm) | 68 (1935) | -1.5 (-4) |
| AIR-CONV07 | AIR-CONV07T | 4” (101.6 mm) | 95 (2690) | -1.36 (-3.4) | ||
| AIR-CONV08 | AIR-CONV08T | 5” (127 mm) | 126.1 (3570) | -1.04 (-2.6) |
